Bediako Hall Videowall Integration

Project Detail

View Testimonial

As part of the renovations to the Auditorium of the GNAT Complex, It was important to integrate a turn key Audio Visual solution that offered best in class reliability and futureproof technology.
The team from Samsung Ghana, brand owners; Electroland Ghana Ltd, the key distributor of Samsung business products and adinkra ino-V8 provided the technical consultancy for designing and integrating a full solution for the new auditorium.

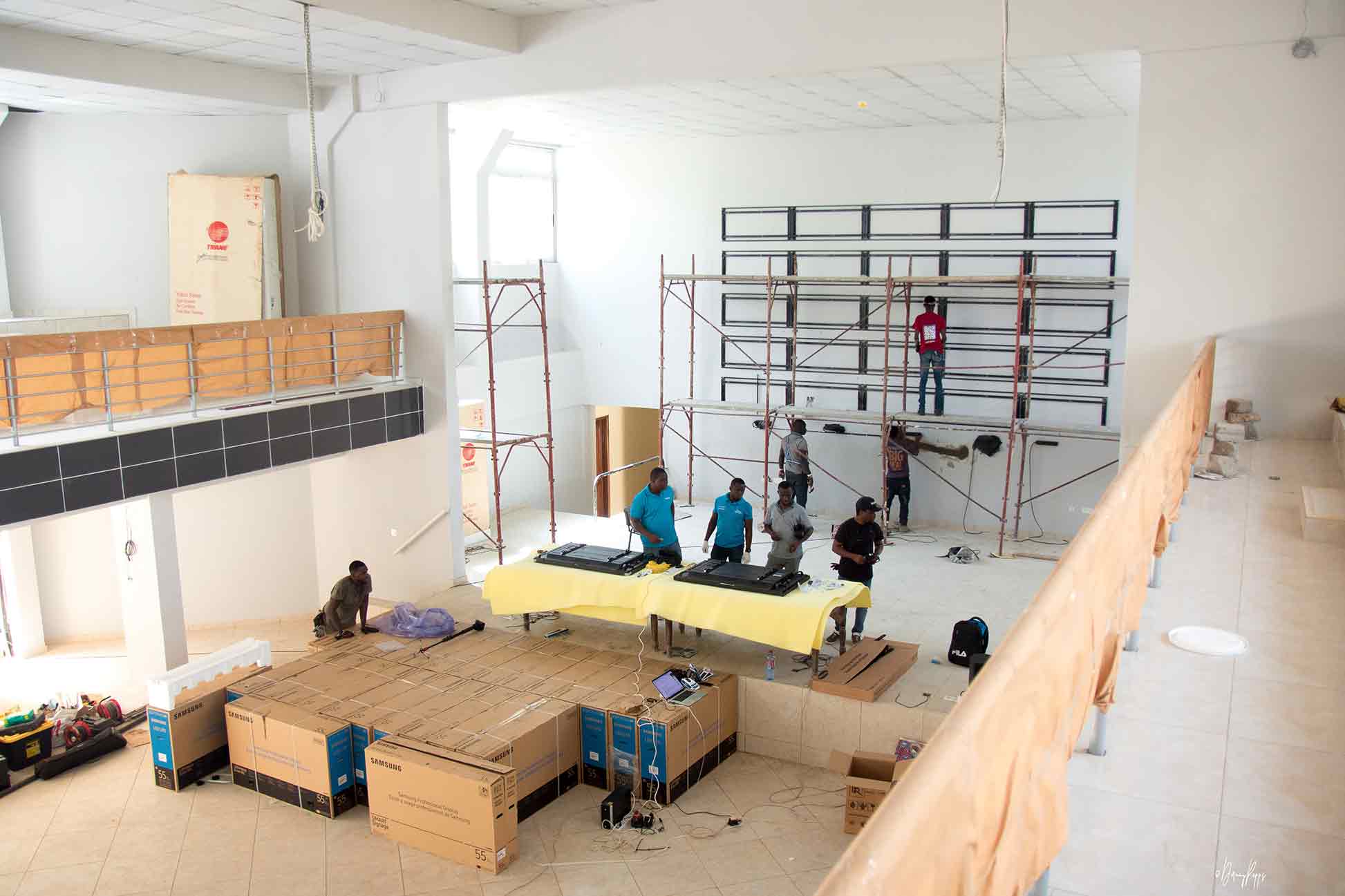

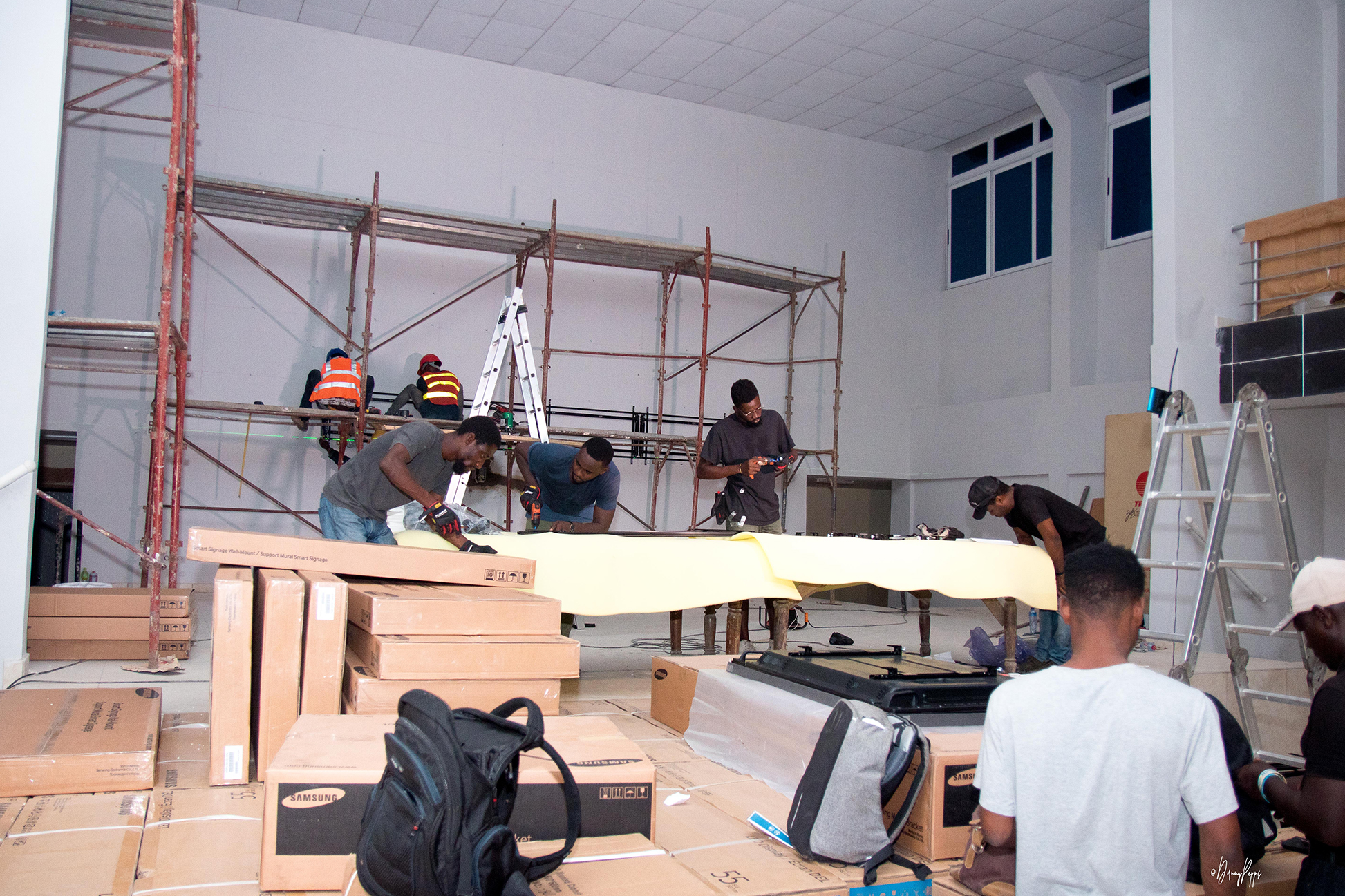

From the first site visit it was clear that the auditorium would be transformed into a truly state of the art multipurpose meeting facility.

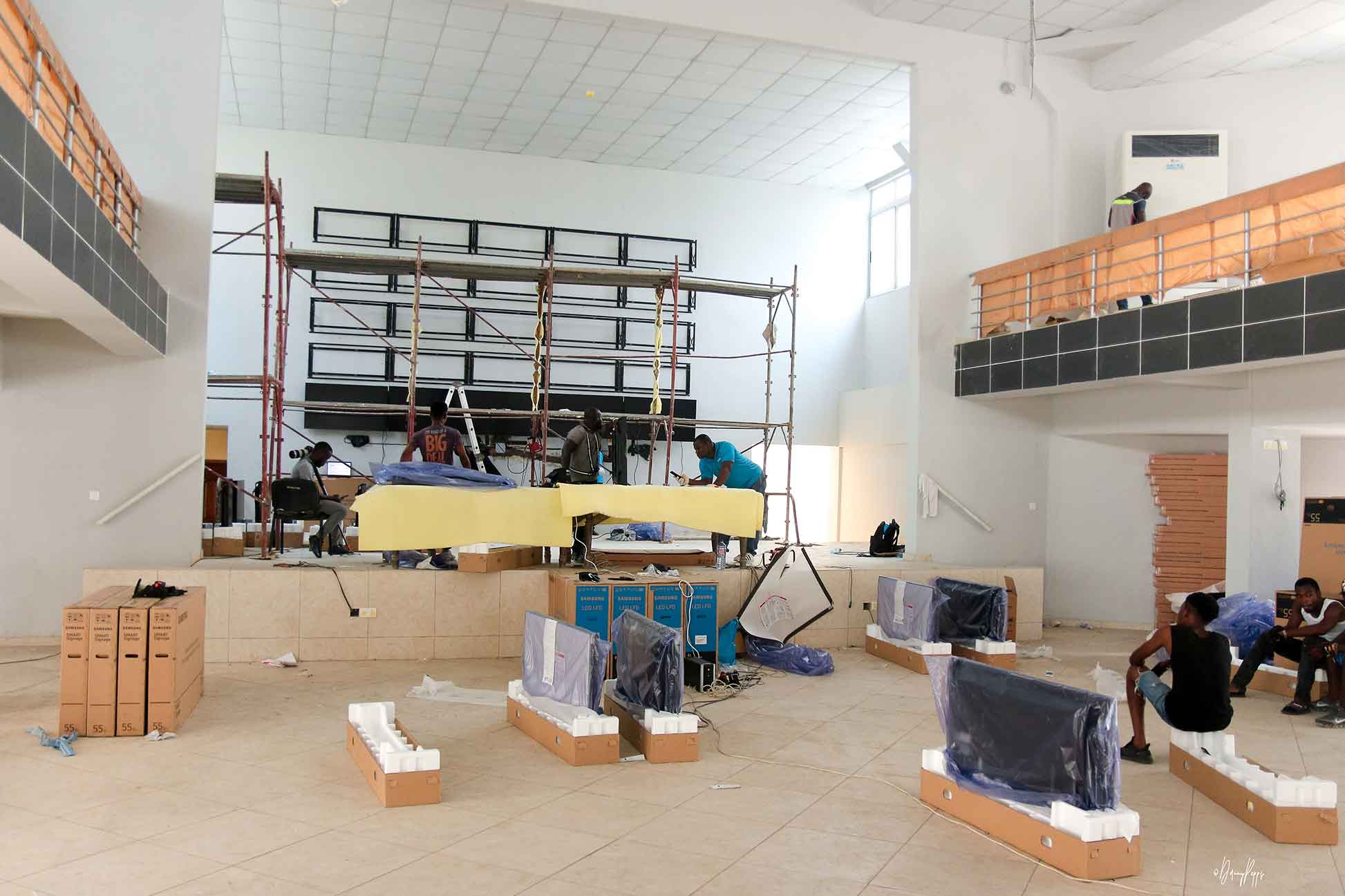

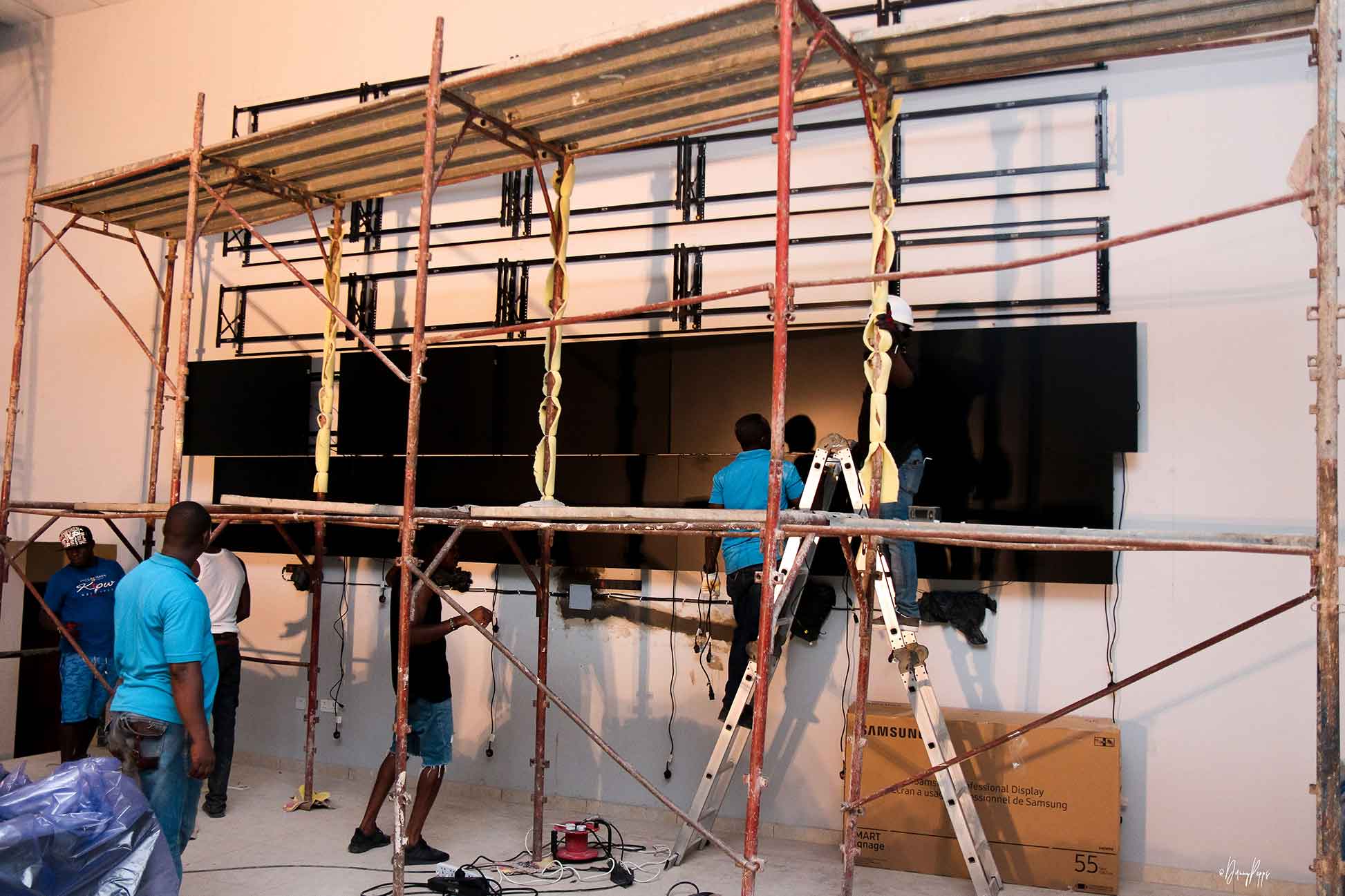

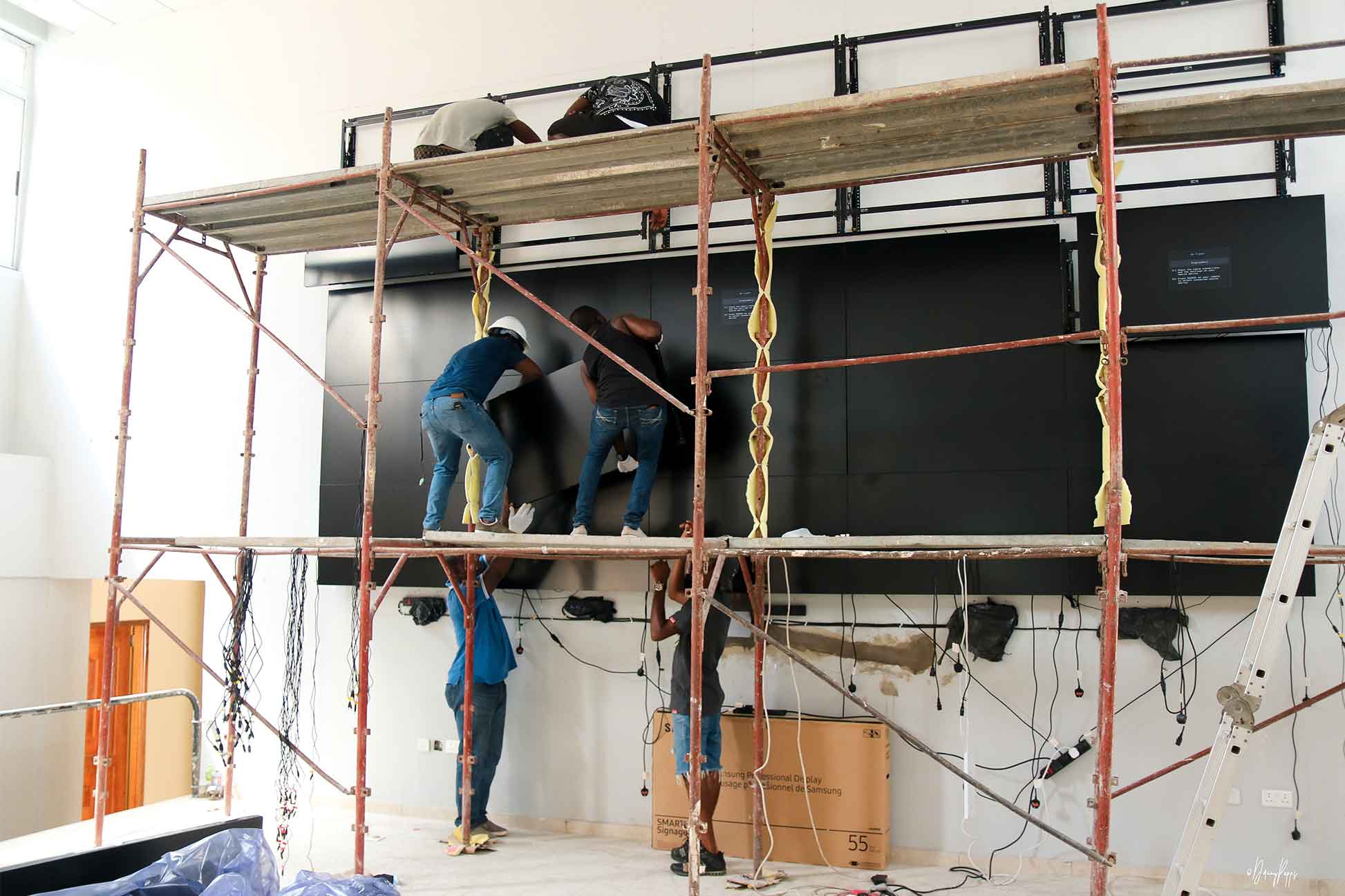

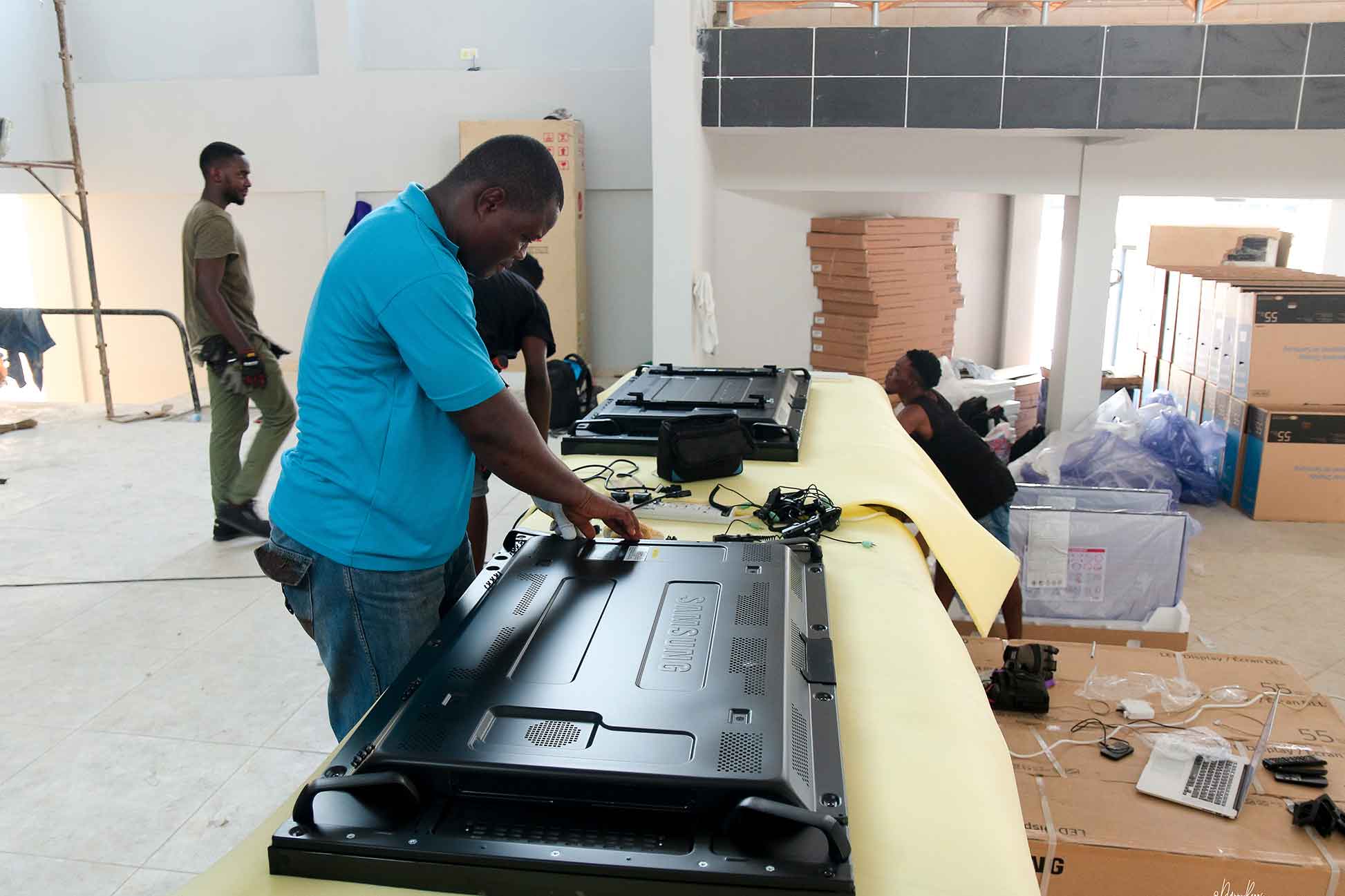

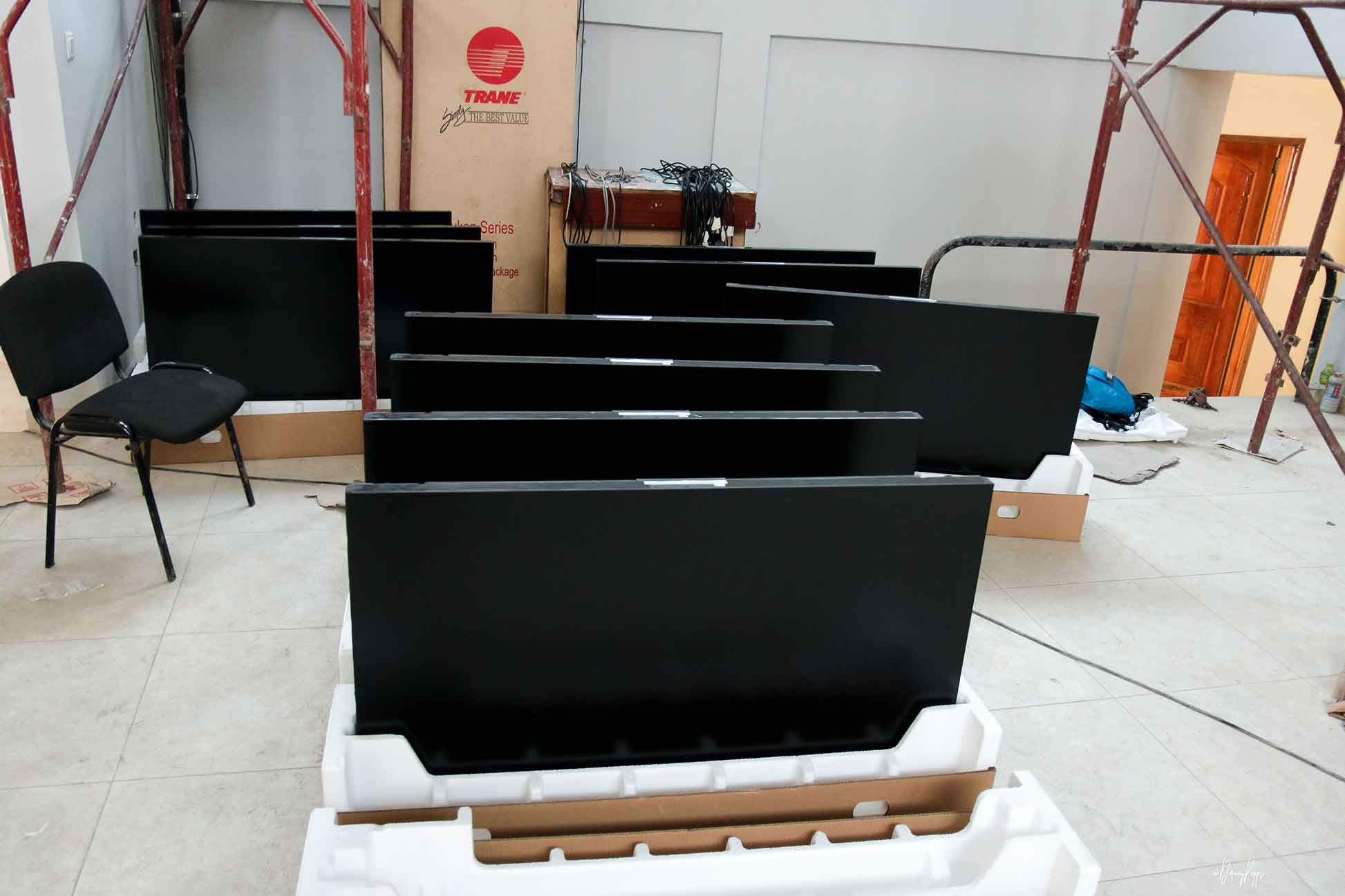

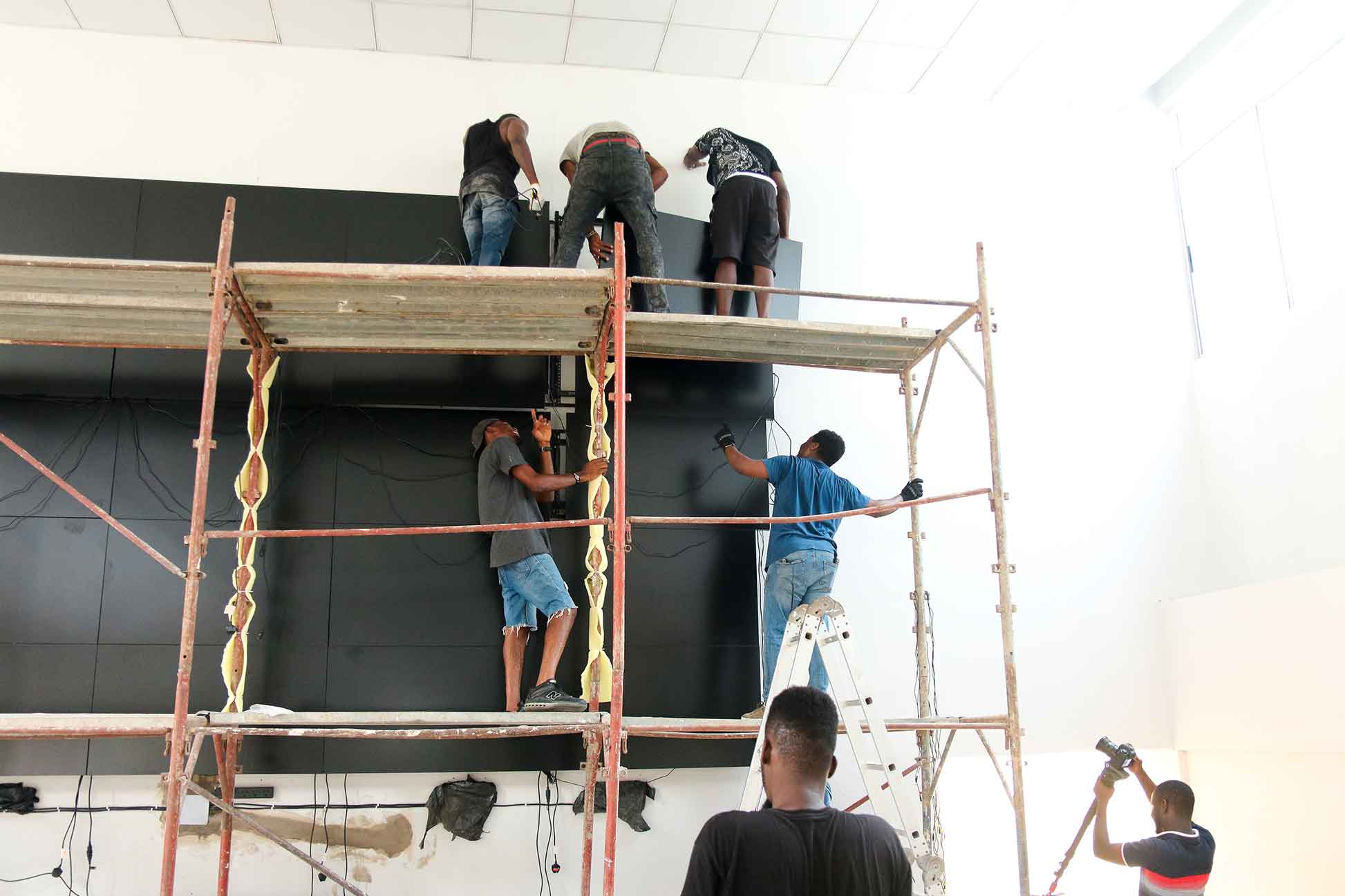

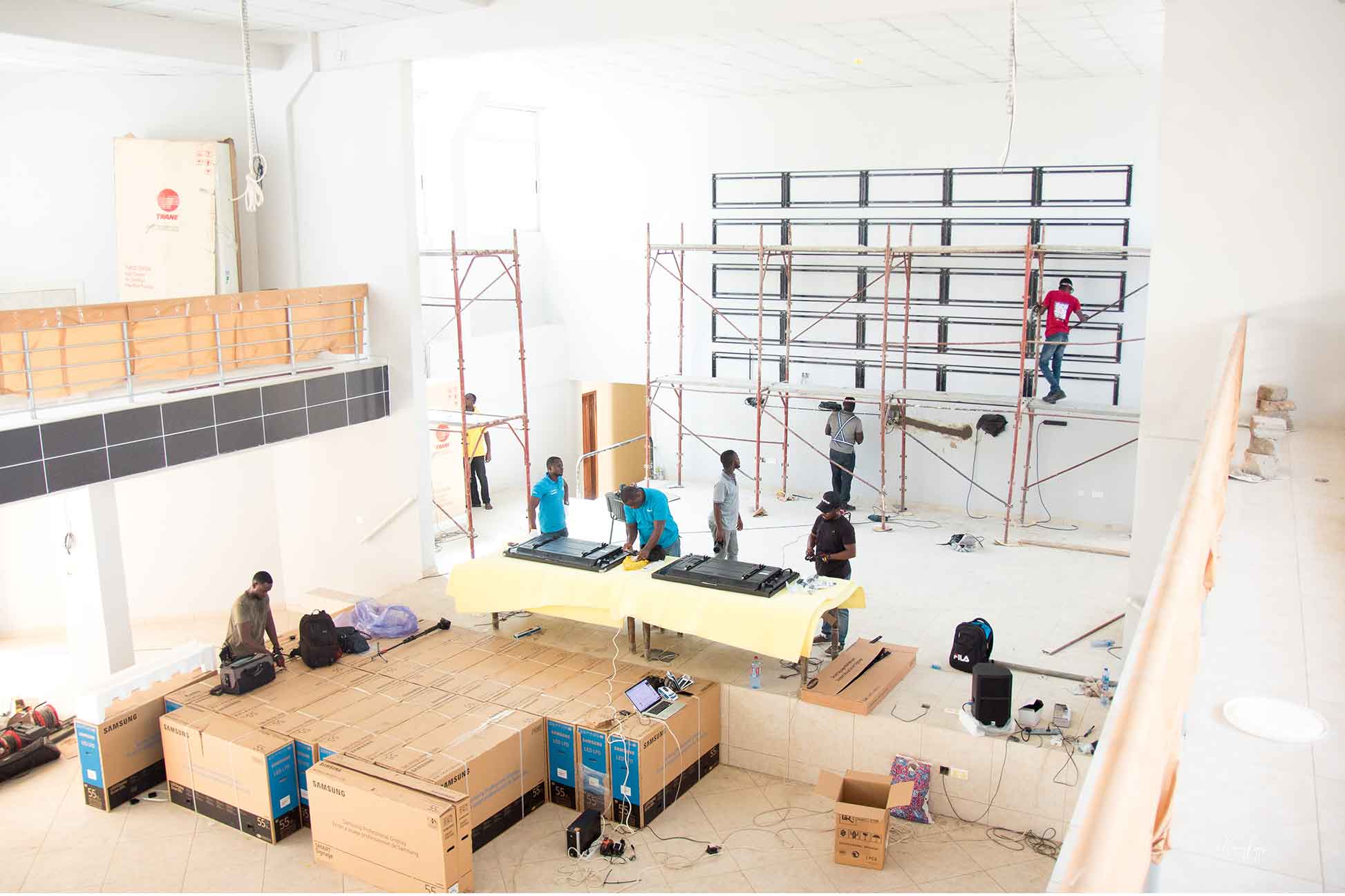

The Display solution proposed was to build a 5x5 videowall consisting of 55” (Samsung UD55E-A) covering a total surface area of approximately 42sqm.
As a single display, this would be the largest videowall deployment based on LED backlit technology. The unit brightness of each panel is at 700nit, which is three times brighter than the average homeTV. This ensures that in bright ambient light conditions, all content on the videowall are crisp and clear.

The system features A display daisy chain over DP and main control signal over HDBaseT from the control room. This ensures that presentations and video content are delivered in high resolution. The videowall runs on clean EMI free power efficiently distributed in zones with emergency shutoff.

The entire auditorium has over twelve 4K capable (including the Videowall) displays of varying sizes (55", 65" and 75"). All managed over HDBaseT for content and signal routing, controlled over wifi, the in-house technicians are able to route different video content to each individual display.

The main stage features an A/V floor box that allows remote connection to the control room for video signal, internet access and audio capabilities.

The Audio Visual installations at Bediako Hall, GNAT together with other word class features, makes it an ideal meeting space and allows seamless connection and integration of presentation equipment with very quick turnaround time.

Read Less

Client

Prestige Technologies & Logistics for GNAT

Project Type

Systems Integration

Date

November 2018
